Auth is a centralized service that provides authentication and authorization capabilities for Lerian Studio’s applications. Built on top of an Identity Provider (IdP), this service offers:
  • OAuth2/OIDC-compliant authentication flows.
  • Token issuance, validation, and refresh capabilities.
  • User information retrieval according to OIDC standards.
  • Permission enforcement for resources.
  • Performance optimization through caching mechanisms.
Auth serves as a middleware between Lerian’s applications and the underlying authorization server, providing a unified interface for all authentication and authorization needs while adding caching capabilities to improve performance.

​

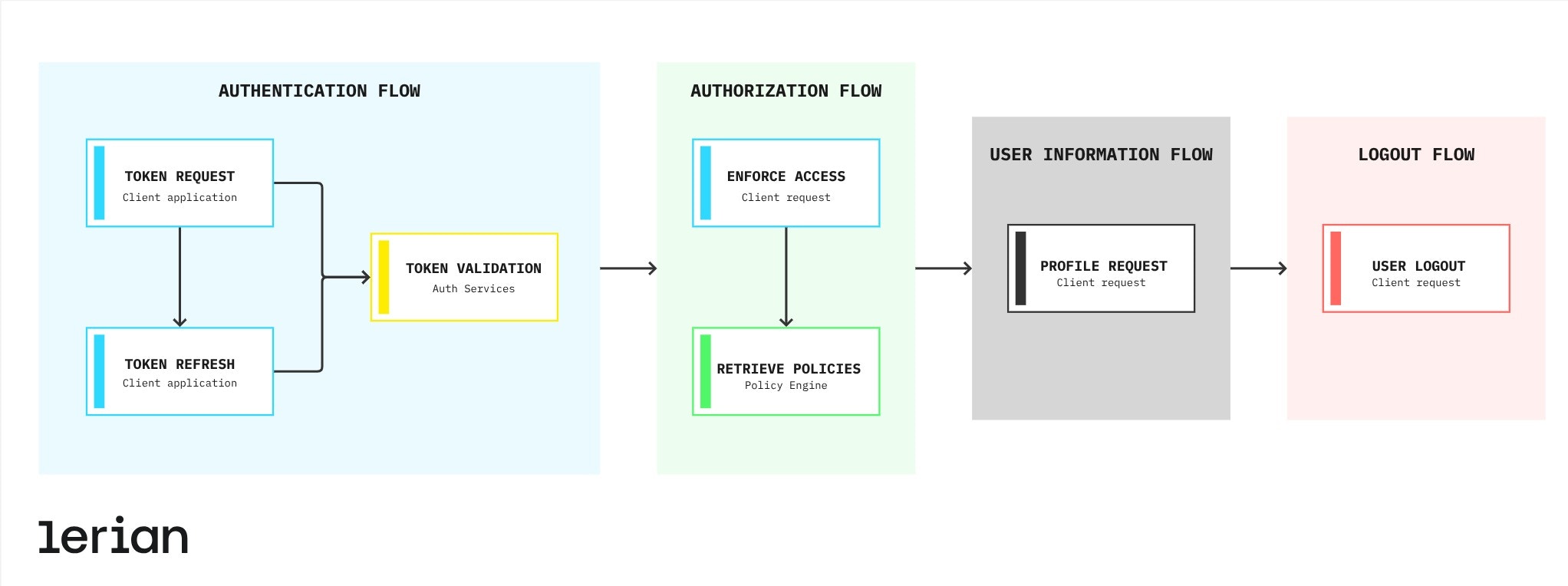

Authentication and authorization flow

Auth implements several key authentication and authorization flows:

​
Authentication flow

1

Token request

  • Client applications request access tokens using either:
    • Password grant (username/password for interactive users).
    • Client credentials grant (for service-to-service authentication).
  • The request is forwarded to the Identity Provider.
  • Access token, refresh token, and optional ID token are returned.
2

Token refresh

  • Client applications use refresh tokens to obtain new access tokens.
  • The refresh token is validated via the Identity Provider.
  • A new access token is issued.
3

Token validation

  • The access tokens are validated on protected resource access.
  • The results are cached for performance optimization.
  • Token claims are extracted to identify the subject.

​
Authorization flow

1

Enforce access

  • Client requests access to a resource with an action.
  • The subject ID is extracted from the token.
  • The policy engine determines if the subject has permission.
  • The result is cached for performance.
  • The authorization decision is returned.
2

Retrieve policies

  • The client requests all policies for the authenticated user.
  • The policy engine is queried for all permitted resources and actions.
  • Policies are returned as a map of resources to the allowed actions.

​
User information flow

1

Profile request

  • The client requests user profile information.
  • The access token is validated.
  • User details are retrieved from the Identity Provider.
  • OIDC-compliant user information is returned.

​
Logout flow

1

User logout

  • Client sends logout request with ID token hint.
  • The tokens are invalidated in the Identity Provider.
  • Cache entries are invalidated.

​
API overview

Auth provides secure identity management and access control for Lerian applications. APIs support:
  • Authentication and token lifecycle management.
  • Authorization and permission enforcement.
  • User information retrieval.
Access to the Auth APIs is secured by strict permission controls. For technical details on endpoints and usage, check the Auth APIs documentation.

​
Policy structure

The policy tables store permissions using the following pattern:

​
Policy rule (ptype=‘p’):

p, <role>, <resource>, <action>, allow, <note>
Example:
p, lerian/identity-editor-role, users, get, allow, lerian/identity-editor-permission
This grants the identity-editor-role permission to perform the GET action on the users resource.

​
Group assignment (ptype=‘g’):

g, <user_id>, <role>
Example:
g, user123, lerian/identity-editor-role
This assigns the user with ID user123 to the identity-editor-role role.

​
Data storage and caching

Auth optimizes performance and security by leveraging a structured storage system and caching mechanisms:
  • Policy management: Stores access control policies for users and services.
  • Token introspection cache: Caches token validation results to reduce redundant checks.
  • Permission cache: Stores authorization decisions to improve response time.
  • User policies cache: Maintains a map of resources and actions for efficient access control.

​
Testing & reliability

Auth undergoes continuous testing to maintain reliability and security. Tests cover:
  • Authentication and token validation flows.
  • Access control enforcement.
  • Performance and caching efficiency.
Security assessments and monitoring ensure compliance with best practices and evolving security standards.
