Enabling transaction events

To activate this feature, set the following environment variable in the transaction application:
RABBITMQ_TRANSACTION_EVENTS_ENABLED=true
Once enabled, Midaz starts publishing events to the following exchange in RabbitMQ:
transaction.transaction_events.exchange

​
Event types

Midaz emits one of the following event types depending on the transaction lifecycle:
ActionDescription
APPROVEDThe transaction was successfully completed. This includes single-step transactions and two-phase transactions that have been committed.
PENDINGA two-phase transaction was created and is waiting for either a commit or cancellation.
CANCELEDA two-phase transaction was canceled before confirmation.

​
Example event payload

{
  "source": "midaz",
  "eventType": "transaction",
  "action": "APPROVED",
  "timestamp": "0000-00-00T18:09:03.757330233Z",
  "version": "v3.0.0",
  "organizationId": "0198575d-f9fd-702b-bb15-fa4c980b32c7",
  "ledgerId": "0198575d-fa0b-7ac7-8b7d-9d3ab7dccafc",
  "payload": {
    "id": "0198575f-a8f9-7924-a6d7-8122f2c77ddd",
    "status": {
      "code": "APPROVED",
      "description": "APPROVED"
    },
    "amount": "1",
    "assetCode": "BRL",
    "source": ["account:1"],
    "destination": ["account:2"],
    "metadata": {
      "key": "value"
    },
    "operations": [
      {
        "type": "DEBIT",
        "amount": { "value": "1" },
        "accountAlias": "account:1"
      },
      {
        "type": "CREDIT",
        "amount": { "value": "1" },
        "accountAlias": "account:2"
      }
    ]
  }
}
The full payload includes timestamps, balance snapshots, and other identifiers used for auditing and traceability.

​
Event routing model

To ensure flexibility and scalability, Midaz uses a topic exchange to publish messages instead of sending them directly to specific queues. This means you control which events to receive by configuring your own bindings.

​
How routing works

Each event published by Midaz is tagged with a routingKey using the format:
midaz.transaction.<status>
Where <status> corresponds to the current transaction status (APPROVED, PENDING, or CANCELED). To consume events, your application must:
1

Create a queue in RabbitMQ.
2

Bind your queue to the Midaz exchange using the routingKey pattern that matches your interest.

​
Visual overview

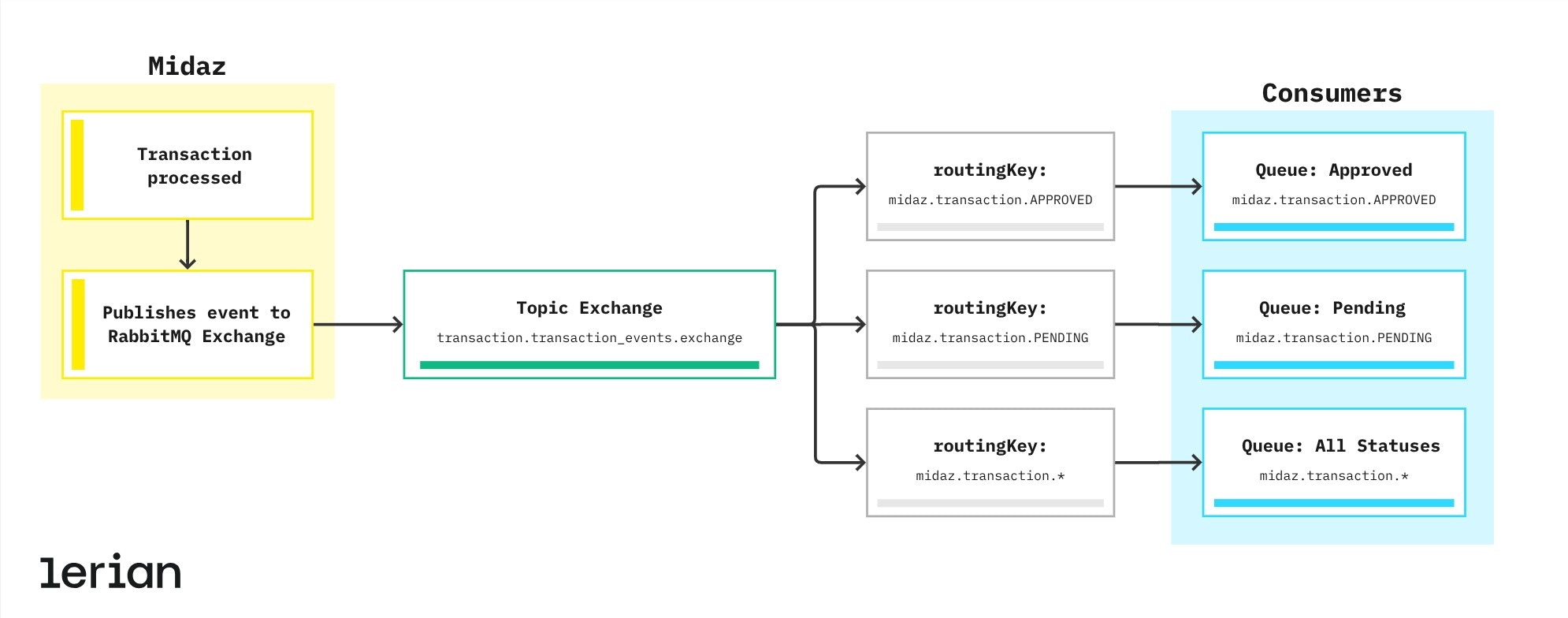

Figure 1. Visual representation of the event routing model.

You can configure multiple queues with different bindings to serve specific teams or services independently.

​
Queue and binding example

​
Creating a new queue

{
  "queues": [
    {
      "name": "new_queue_name.queue",
      "vhost": "/",
      "durable": true
    }
  ]
}

​
Binding the queue to receive all events

{
  "bindings": [
    {
      "source": "transaction.transaction_events.exchange",
      "vhost": "/",
      "destination": "new_queue_name.queue",
      "destination_type": "queue",
      "routing_key": "midaz.transaction.*"
    }
  ]
}
Midaz does not manage or create RabbitMQ queues for you. You are responsible for provisioning queues and setting up the correct bindings.
