The Tracer rules engine lets you build powerful validation logic without writing code. Using CEL (Common Expression Language)—a type-safe expression language developed by Google—you can create sophisticated rules that evaluate in under 1ms, automate complex business decisions, and adapt quickly to new requirements.

Why use the rules engine

Benefit	Description
Flexibility	Create and modify rules without code deploys
Performance	Compiled expressions evaluate in under 1ms each
Type safety	Expression syntax validated at rule creation
Complete evaluation	All active rules evaluated for comprehensive audit trail
Scope-based	Apply rules to specific segments, accounts, or transaction types

By the end of this guide, you will:

Understand rule engine concepts and evaluation flow
Create and test expression-based rules
Manage the rule lifecycle (DRAFT, ACTIVE, INACTIVE, DELETED)
Apply best practices for rule management

What is the rules engine

The rules engine is the Tracer component responsible for evaluating expressions during transaction validation. It enables fraud analysts and risk managers to configure business logic that executes in real time—without requiring code deployments or engineering support.

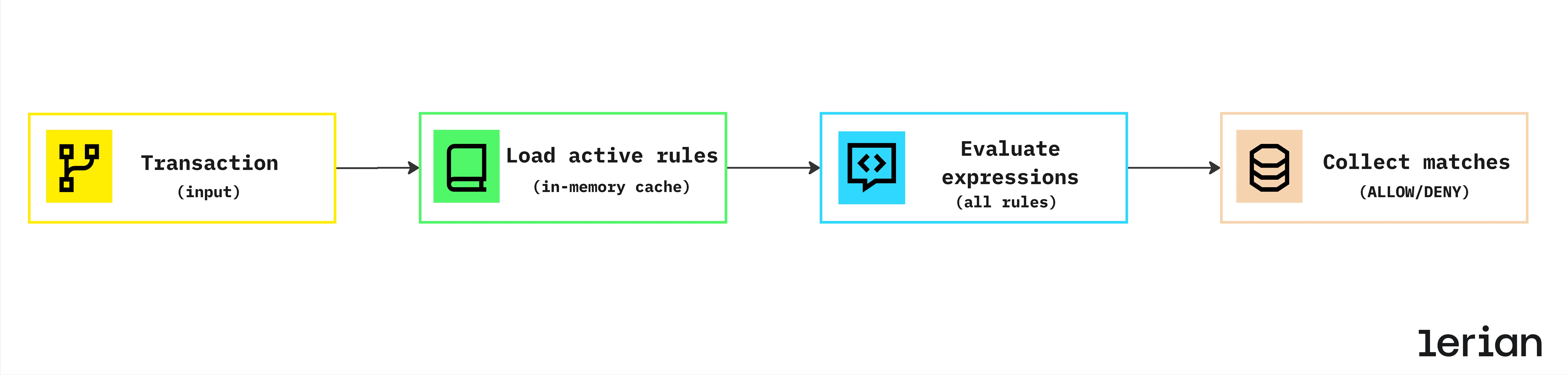

How it works

In this flow:

Load rules fetches all active rules from cache (or database on cache miss)
Evaluate expressions runs all CEL expressions against the transaction context
Collect matches gathers all rules that matched and determines the decision

Evaluation pattern

All active rules are evaluated against every transaction. There is no priority ordering or short-circuit evaluation. This ensures:

Complete audit trail (all matching rules recorded)
No information loss (analysts can see all triggers)
Simple logic (no priority conflicts)

Decision precedence:

If any DENY rule matches, Tracer returns a DENY decision
If only ALLOW rules match, Tracer returns an ALLOW decision
If no rules match, Tracer returns the configured default (typically ALLOW for fail-open behavior)

Tracer returns decisions; it does not block transactions directly. Your system receives the decision and is responsible for taking the appropriate action (e.g., blocking, allowing, or queuing for review).

Core concepts

Before creating rules, understand the foundational elements.

Rules

A rule is a unit of business logic composed of:

Expression - A type-safe expression that evaluates to true or false
Action - What decision to return when the expression is true
Scopes - Which transactions the rule applies to
Status - The rule’s lifecycle state

Expressions

Expressions are written in CEL (Common Expression Language), a type-safe language that evaluates transaction context and returns a boolean value (true or false). CEL provides compile-time validation, so syntax errors are caught when you create the rule—not when transactions are being processed. Example expressions:

transaction.amount > 10000

account.segmentId == "high-risk-segment" && transaction.amount > 5000

merchant.category == "gambling"

Expressions have access to the full transaction context including:

transaction - Amount, currency, type, subType, timestamp
account - AccountId, segmentId, portfolioId
segment - SegmentId and segment metadata
portfolio - PortfolioId and portfolio metadata
merchant - MerchantId, category, country, riskLevel (optional)
metadata - Custom fields passed in the request

Expression examples by use case

Here are practical examples organized by business scenario:

Amount-based rules

// Block transactions above a threshold
transaction.amount > 10000

// Block high-value international transfers
transaction.type == "WIRE" && transaction.subType == "international" && transaction.amount > 50000

// Review large cryptocurrency transactions
transaction.type == "CRYPTO" && transaction.amount > 5000

Merchant-based rules

// Block gambling merchants
merchant.category == "7995"

// Block high-risk merchant categories
merchant.category in ["7995", "5967", "5966"]

// Review transactions from new merchant countries
merchant.country != "BR" && transaction.amount > 1000

Account-based rules

// Block suspended accounts
account.status == "suspended"

// Review transactions from newly created accounts
metadata.accountAgeDays < 30 && transaction.amount > 500

// Block closed accounts
account.status == "closed"

Combined conditions

// High-value transaction from high-risk segment
account.segmentId == "high-risk-segment-uuid" && transaction.amount > 5000

// International PIX above threshold
transaction.type == "PIX" && transaction.subType == "international" && transaction.amount > 10000

// Large card transaction to foreign merchant
transaction.type == "CARD" && merchant.country != "BR" && transaction.amount > 3000

Using metadata

// Block transactions from untrusted devices
metadata.deviceTrust == "untrusted"

// Review first-time purchases above threshold
metadata.isFirstPurchase == true && transaction.amount > 1000

// Block transactions outside business hours (using metadata)
metadata.isBusinessHours == false && transaction.amount > 5000

// VIP customers bypass certain restrictions
metadata.customerTier == "vip" && transaction.amount < 50000

Metadata fields are provided by your integration. Design your payload to include the context your rules need.

Actions

Actions determine the decision when an expression evaluates to true:

Action	Description
`ALLOW`	Allow the transaction
`DENY`	Deny the transaction
`REVIEW`	Route to manual review

Scopes

Scopes define which transactions a rule applies to. A rule only evaluates against transactions that match at least one of its scopes. Scope fields (all optional):

segmentId - Match transactions from a specific segment
portfolioId - Match transactions from a specific portfolio
accountId - Match transactions from a specific account
merchantId - Match transactions to a specific merchant
transactionType - Match specific transaction types (CARD, WIRE, PIX, CRYPTO)
subType - Match specific subtypes (debit, credit, instant, etc.)

If a scope field is not specified, it matches any value for that field.

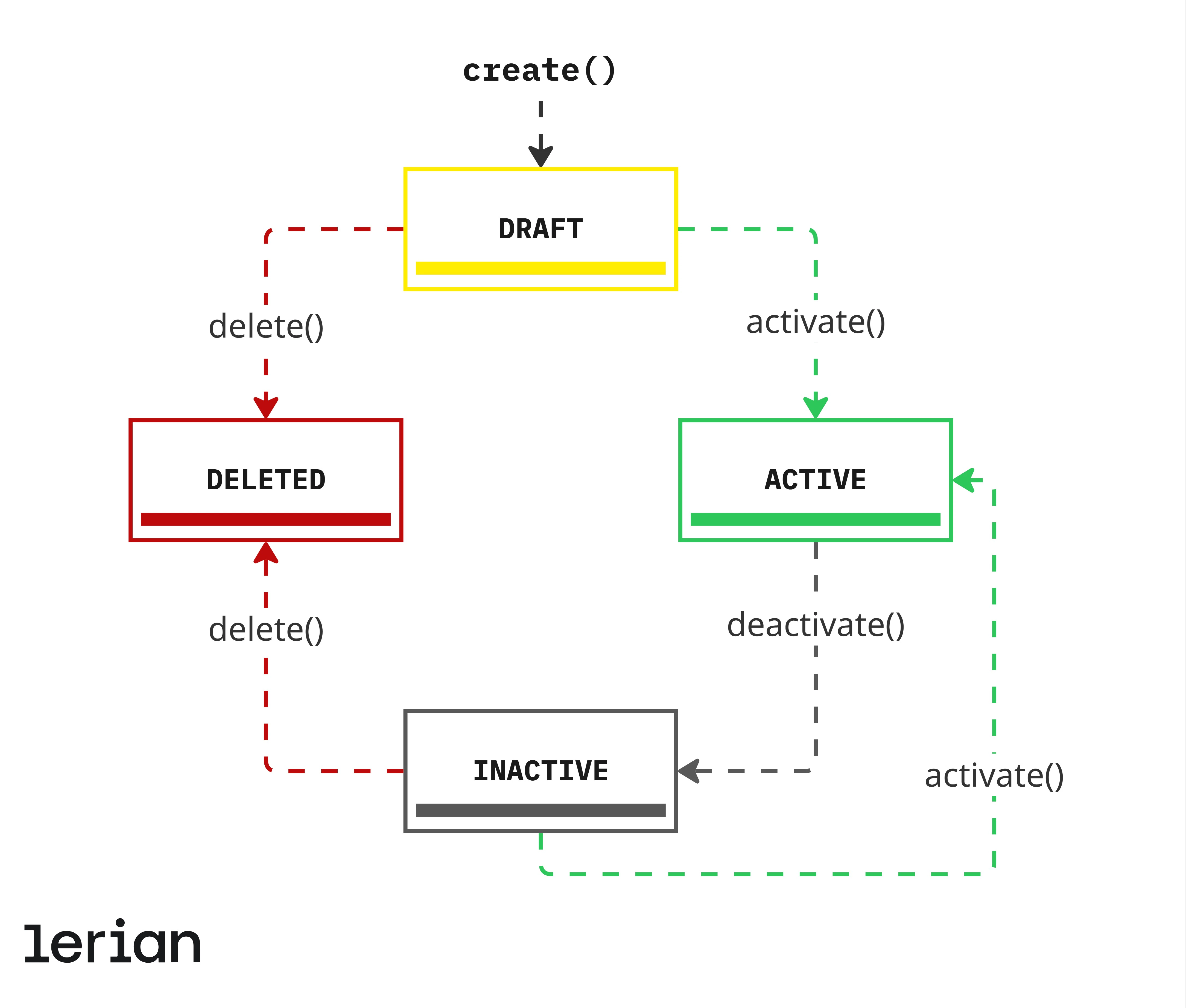

Rule lifecycle

Rules progress through a defined lifecycle to ensure safe deployment.

States

State	Description
`DRAFT`	Not evaluated; expression can be modified freely
`ACTIVE`	Evaluated during validations; expression is immutable
`INACTIVE`	Not evaluated; preserved for audit trail; can be reactivated
`DELETED`	Permanently removed; does not appear in listings; cannot be recovered

Transitions

Transition	From	To	Description
`activate`	DRAFT, INACTIVE	ACTIVE	Start evaluation (validates expression)
`deactivate`	ACTIVE	INACTIVE	Stop evaluation
`delete`	DRAFT, INACTIVE	DELETED	Permanent removal (cannot delete ACTIVE rules)

Active rules must be deactivated before deletion. This prevents accidental removal of rules that are currently being evaluated.

Create a rule

Create rules to automate validation decisions. Rules are created in DRAFT status by default.

Request

POST /v1/rules
X-API-Key: {api_key}
Content-Type: application/json

{
  "name": "Block high-value transactions",
  "description": "Deny transactions above BRL 10,000 for high-risk segment",
  "expression": "transaction.amount > 10000 && account.segmentId == \"high-risk-uuid\"",
  "action": "DENY",
  "scopes": [
    {
      "segmentId": "high-risk-uuid",
      "transactionType": "CARD"
    }
  ]
}

Response

{
  "ruleId": "rule-uuid-123",
  "name": "Block high-value transactions",
  "description": "Deny transactions above BRL 10,000 for high-risk segment",
  "expression": "transaction.amount > 10000 && account.segmentId == \"high-risk-uuid\"",
  "action": "DENY",
  "scopes": [
    {
      "segmentId": "high-risk-uuid",
      "transactionType": "CARD"
    }
  ],
  "status": "DRAFT",
  "createdAt": "2026-01-29T10:00:00Z",
  "updatedAt": "2026-01-29T10:00:00Z"
}

Rule fields

Field	Type	Required	Description
`name`	string	Yes	Unique rule name
`description`	string	No	Purpose description
`expression`	string	Yes	Boolean expression to evaluate
`action`	enum	Yes	ALLOW, DENY, or REVIEW
`scopes`	array	No	Scopes the rule applies to

Activate and deactivate rules

After creating a rule, activate it to start evaluation. Deactivate rules to stop evaluation without deleting them.

Activate a rule

POST /v1/rules/{ruleId}/activate
X-API-Key: {api_key}

Response:

{
  "ruleId": "rule-uuid-123",
  "name": "Block high-value transactions",
  "status": "ACTIVE",
  "updatedAt": "2026-01-29T11:00:00Z"
}

Deactivate a rule

POST /v1/rules/{ruleId}/deactivate
X-API-Key: {api_key}

Response:

{
  "ruleId": "rule-uuid-123",
  "name": "Block high-value transactions",
  "status": "INACTIVE",
  "updatedAt": "2026-01-29T15:00:00Z"
}

Deactivating a rule preserves it for audit purposes. Use delete only when you want to permanently remove a rule.

List and query rules

Query rules for management and auditing.

List all rules

GET /v1/rules
X-API-Key: {api_key}

Query parameters:

Parameter	Type	Description
`status`	string	Filter by status (DRAFT, ACTIVE, INACTIVE)
`pageSize`	integer	Items per page (default: 100, max: 1000)
`pageToken`	string	Pagination token

Response:

{
  "data": [
    {
      "ruleId": "rule-uuid-123",
      "name": "Block high-value transactions",
      "description": "Deny transactions above BRL 10,000",
      "action": "DENY",
      "status": "ACTIVE",
      "createdAt": "2026-01-29T10:00:00Z",
      "updatedAt": "2026-01-29T11:00:00Z"
    },
    {
      "ruleId": "rule-uuid-456",
      "name": "Allow verified accounts",
      "description": "Allow transactions from verified premium accounts",
      "action": "ALLOW",
      "status": "ACTIVE",
      "createdAt": "2026-01-28T09:00:00Z",
      "updatedAt": "2026-01-28T09:00:00Z"
    }
  ],
  "nextPageToken": null
}

Get a specific rule

GET /v1/rules/{ruleId}
X-API-Key: {api_key}

Response includes the full rule definition with expression and scopes.

Update a rule

Rules can be updated in any status. However, the expression field is immutable once the rule is ACTIVE—to change the expression, deactivate the rule first.

PATCH /v1/rules/{ruleId}
X-API-Key: {api_key}
Content-Type: application/json

{
  "description": "Updated description",
  "expression": "transaction.amount > 5000"
}

The expression field cannot be updated while a rule is ACTIVE. Deactivate the rule first to modify its expression.

Delete a rule

Delete rules that are no longer needed. Only DRAFT and INACTIVE rules can be deleted. ACTIVE rules must be deactivated first.

DELETE /v1/rules/{ruleId}
X-API-Key: {api_key}

Response: 204 No Content

Deletion is permanent. Deleted rules cannot be recovered and do not appear in any listings.

Best practices

Follow these practices for effective, maintainable rules.

Naming

Use descriptive names - The name should clearly state what the rule does
Include context - Mention the scenario or transaction type
Avoid abbreviations - Prefer clarity over brevity

Less clear	More clear
`Rule 1`	`Block night transactions above BRL 5,000`
`Block high`	`Deny high-value weekend transactions`
`PIX rule`	`Review PIX transfers to new recipients`

Expression design

Keep expressions simple - Complex logic is harder to maintain
Use scopes for filtering - Don’t repeat scope conditions in expressions
Test edge cases - Consider boundary values and null fields

Lifecycle management

Start in DRAFT - Test before activating
Deactivate before editing - Never edit active rules
Archive unused rules - Keep audit trail intact
Delete only when certain - Deletion is permanent

Monitoring

Review matched rules - Check which rules are triggering
Monitor DENY rates - High deny rates may indicate overly aggressive rules
Audit regularly - Ensure rules still align with business requirements

Common errors

Rule creation

Code	Message	Resolution
`400`	`Invalid expression syntax`	Check expression syntax
`400`	`Expression must return boolean`	Ensure expression evaluates to true/false
`400`	`Missing required field`	Include all required fields
`409`	`Rule name already exists`	Use a unique rule name

Rule activation

Code	Message	Resolution
`400`	`Invalid status transition`	Check current rule status
`400`	`Expression validation failed`	Fix expression before activating

Rule deletion

Code	Message	Resolution
`400`	`Cannot delete active rule`	Deactivate before deleting
`404`	`Rule not found`	Verify the rule ID

Quick reference

Endpoints

Operation	Method	Endpoint
Create rule	POST	`/v1/rules`
List rules	GET	`/v1/rules`
Get rule	GET	`/v1/rules/{id}`
Update rule	PATCH	`/v1/rules/{id}`
Delete rule	DELETE	`/v1/rules/{id}`
Activate rule	POST	`/v1/rules/{id}/activate`
Deactivate rule	POST	`/v1/rules/{id}/deactivate`

Actions

Action	Description
`ALLOW`	Allow the transaction
`DENY`	Deny the transaction
`REVIEW`	Route to manual review

Statuses

Status	Evaluated	Editable	Can delete
`DRAFT`	No	Yes	Yes
`ACTIVE`	Yes	Partial (expression immutable)	No (deactivate first)
`INACTIVE`	No	Yes	Yes
`DELETED`	No	No	N/A

​Why use the rules engine

​What is the rules engine

​How it works

​Evaluation pattern

​Core concepts

​Rules

​Expressions

​Expression examples by use case

​Amount-based rules

​Merchant-based rules

​Account-based rules

​Combined conditions

​Using metadata

​Actions

​Scopes

​Rule lifecycle

​States

​Transitions

​Create a rule

​Request

​Response

​Rule fields

​Activate and deactivate rules

​Activate a rule

​Deactivate a rule

​List and query rules

​List all rules

​Get a specific rule

​Update a rule

​Delete a rule

​Best practices

​Naming

​Expression design

​Lifecycle management

​Monitoring

​Common errors

​Rule creation

​Rule activation

​Rule deletion

​Quick reference

​Endpoints

​Actions

​Statuses

Why use the rules engine

What is the rules engine

How it works

Evaluation pattern

Core concepts

Rules

Expressions

Expression examples by use case

Amount-based rules

Merchant-based rules

Account-based rules

Combined conditions

Using metadata

Actions

Scopes

Rule lifecycle

States

Transitions

Create a rule

Request

Response

Rule fields

Activate and deactivate rules

Activate a rule

Deactivate a rule

List and query rules

List all rules

Get a specific rule

Update a rule

Delete a rule

Best practices

Naming

Expression design

Lifecycle management

Monitoring

Common errors

Rule creation

Rule activation

Rule deletion

Quick reference

Endpoints

Actions

Statuses
