Midaz integration

This integration is optional. Matcher is a stand-alone product that works independently. Use this guide only if you want to integrate Matcher with Midaz Ledger.

Matcher can integrate natively with Midaz Ledger, enabling seamless reconciliation of ledger transactions against external sources like bank statements and payment gateways.

Overview

The Midaz integration provides:

Direct ledger access: Query transactions directly from Midaz without file exports
Real-time sync: Automatic transaction synchronization as entries are posted
Unified authentication: Single auth system via lib-auth
Tenant isolation: Schema-per-tenant architecture ensures data separation

Prerequisites

Before configuring the Midaz integration:

Midaz Ledger instance running and accessible
API credentials with transaction read permissions
Network connectivity between Matcher and Midaz
Matching tenant configuration in both systems

Configuration

Environment variables

Configure Matcher to connect to your Midaz instance:

# Midaz connection
MIDAZ_BASE_URL=https://api.midaz.example.com
MIDAZ_GRPC_ADDRESS=midaz-grpc.example.com:50051

# Authentication (shared with midaz)
AUTH_SERVICE_URL=https://auth.example.com
AUTH_CLIENT_ID=matcher-service
AUTH_CLIENT_SECRET=your-secret

# Connection settings
MIDAZ_CONNECTION_TIMEOUT=30s
MIDAZ_REQUEST_TIMEOUT=60s
MIDAZ_MAX_RETRIES=3

Create Midaz source via API

cURL

curl -X POST "https://api.matcher.example.com/v1/contexts/ctx_abc123/sources" \
 -H "Authorization: Bearer $TOKEN" \
 -H "Content-Type: application/json" \
 -d '{
   "name": "Midaz Main Ledger",
   "type": "MIDAZ",
   "description": "Primary ledger for operating accounts",
   "direction": "INTERNAL",
   "settings": {
     "ledger_id": "ldg_001",
     "account_filter": {
       "type": "ASSET",
       "path_prefix": "assets:cash"
     },
     "sync_mode": "realtime",
     "lookback_days": 30
   }
 }'

Response

{
  "id": "src_midaz_001",
  "context_id": "ctx_abc123",
  "name": "Midaz Main Ledger",
  "type": "MIDAZ",
  "direction": "INTERNAL",
  "status": "CONNECTED",
  "settings": {
    "ledger_id": "ldg_001",
    "account_filter": {
      "type": "ASSET",
      "path_prefix": "assets:cash"
    },
    "sync_mode": "realtime",
    "lookback_days": 30
  },
  "connection_status": {
    "connected": true,
    "last_sync": "2024-01-20T10:00:00Z",
    "transaction_count": 15420
  },
  "created_at": "2024-01-15T10:00:00Z"
}

Source settings

Setting	Type	Description
`ledger_id`	String	Target ledger ID in Midaz
`account_filter.type`	String	Account type filter (ASSET, LIABILITY, etc.)
`account_filter.path_prefix`	String	Account path prefix to include
`account_filter.accounts`	Array	Specific account IDs to include
`sync_mode`	String	`realtime` or `batch`
`lookback_days`	Integer	Days of historical data to include
`exclude_pending`	Boolean	Exclude pending entries

Authentication

Matcher uses the same authentication system as Midaz via the shared lib-auth library.

Service-to-service auth

Matcher authenticates to Midaz using OAuth 2.0 client credentials:

# Token exchange happens automatically
# Matcher requests: POST /oauth/token
{
 "grant_type": "client_credentials",
 "client_id": "matcher-service",
 "client_secret": "your-secret",
 "scope": "ledger:read transactions:read"
}

Required scopes

Scope	Permission
`ledger:read`	Read ledger metadata
`transactions:read`	Read transaction entries
`accounts:read`	Read account information

Tenant context

All requests include the tenant context header:

X-Tenant-ID: tenant_001

This ensures transactions are queried from the correct tenant schema.

Querying transactions

Automatic sync

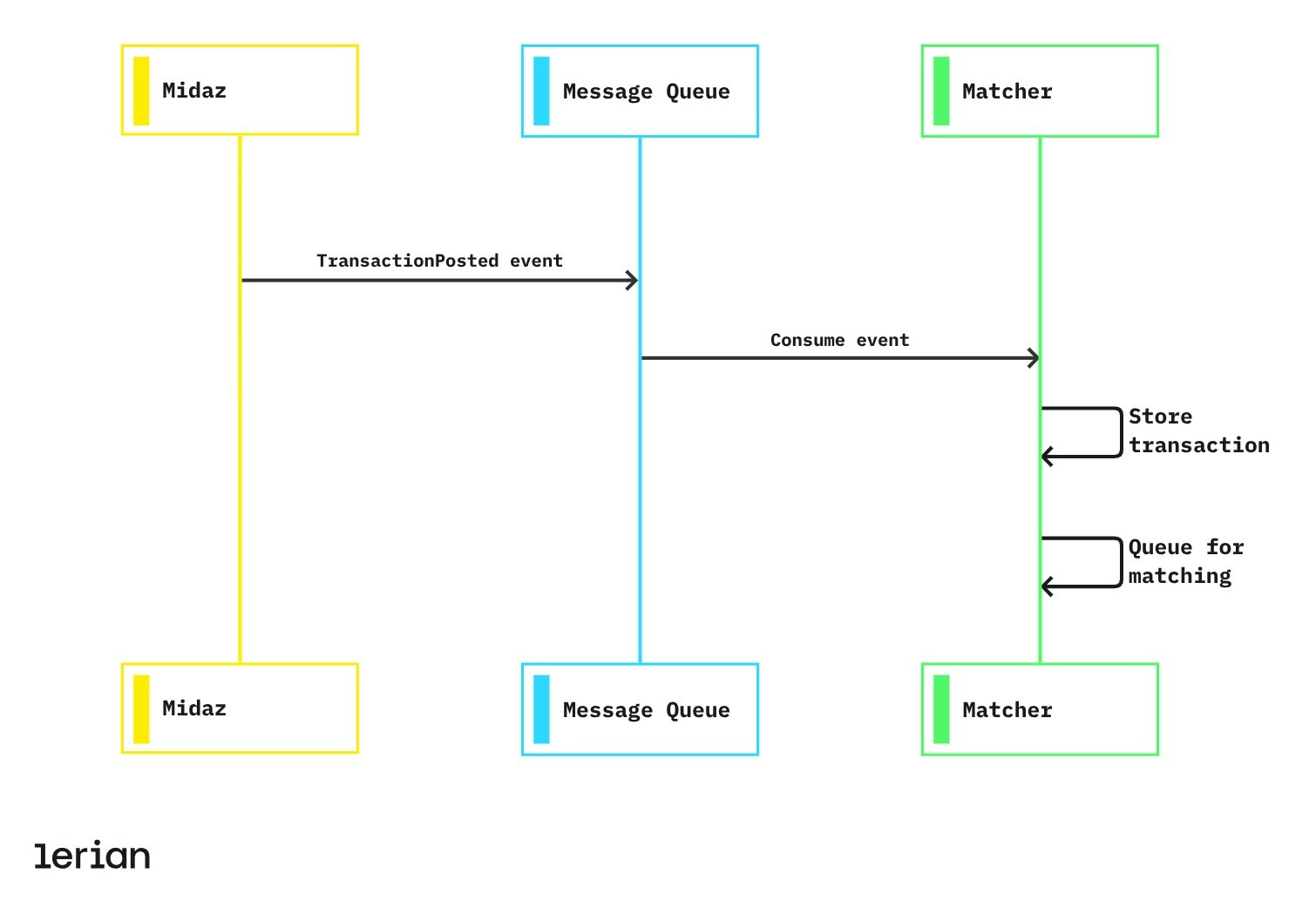

With sync_mode: realtime, Matcher subscribes to Midaz events and receives transactions as they’re posted. When a transaction is created in Midaz, it publishes an event to the message queue. Matcher consumes the event, stores the transaction locally, and queues it for matching—all without manual intervention.

Manual query

For batch operations or historical data:

cURL

curl -X POST "https://api.matcher.example.com/v1/sources/src_midaz_001/sync" \
 -H "Authorization: Bearer $TOKEN" \
 -H "Content-Type: application/json" \
 -d '{
   "date_from": "2024-01-01",
   "date_to": "2024-01-31",
   "force_refresh": false
 }'

Response

{
  "sync_id": "sync_001",
  "source_id": "src_midaz_001",
  "status": "IN_PROGRESS",
  "date_range": {
    "from": "2024-01-01",
    "to": "2024-01-31"
  },
  "progress": {
    "total_expected": 5000,
    "fetched": 0,
    "new": 0,
    "updated": 0
  },
  "started_at": "2024-01-20T10:30:00Z"
}

Query filters

Filter transactions when syncing:

{
  "date_from": "2024-01-01",
  "date_to": "2024-01-31",
  "filters": {
    "operation_types": [
      "CREDIT",
      "DEBIT"
    ],
    "min_amount": 100.0,
    "currencies": [
      "USD",
      "EUR"
    ],
    "metadata": {
      "source_system": "treasury"
    }
  }
}

Transaction mapping

Midaz transactions are automatically mapped to Matcher’s schema:

Midaz Field	Matcher Field	Notes
`id`	`transaction_id`	Unique entry ID
`amount`	`amount`	Decimal amount
`asset_code`	`currency`	ISO currency code
`created_at`	`date`	Entry date
`description`	`reference`	Entry description
`metadata.external_ref`	`external_id`	External reference if present
`operation`	`type`	CREDIT or DEBIT

Custom field mapping

Override default mapping for specific use cases:

{
  "settings": {
    "field_mapping": {
      "reference": "metadata.invoice_number",
      "counterparty": "metadata.vendor_name",
      "external_id": "metadata.bank_reference"
    }
  }
}

Tenant isolation

Matcher inherits Midaz’s schema-per-tenant isolation model.

How it works

Each tenant has a dedicated PostgreSQL schema
All queries are scoped to the tenant’s schema
Connection pooling maintains schema context
No cross-tenant data access is possible

Database: matcher_db
├── tenant_001 (schema)
│ ├── transactions
│ ├── matches
│ └── exceptions
├── tenant_002 (schema)
│ ├── transactions
│ ├── matches
│ └── exceptions
└── shared (schema)
 ├── field_maps
 └── rules_templates

Tenant resolution

Tenant is determined from the authentication token:

{
  "sub": "user_123",
  "tenant_id": "tenant_001",
  "roles": [
    "reconciliation_admin"
  ]
}

Error handling

Connection errors

{
  "error": "MIDAZ_CONNECTION_ERROR",
  "message": "Failed to connect to Midaz at midaz-grpc.example.com:50051",
  "details": {
    "retry_count": 3,
    "last_error": "connection refused"
  },
  "suggestion": "Check network connectivity and Midaz service status"
}

Authentication errors

{
  "error": "MIDAZ_AUTH_ERROR",
  "message": "Failed to authenticate with Midaz",
  "details": {
    "status_code": 401,
    "reason": "invalid_client"
  },
  "suggestion": "Verify client credentials and required scopes"
}

Sync errors

{
  "error": "MIDAZ_SYNC_ERROR",
  "message": "Partial sync failure",
  "details": {
    "total_expected": 5000,
    "fetched": 4500,
    "failed_batches": [
      {
        "batch": 10,
        "error": "timeout"
      }
    ]
  },
  "suggestion": "Retry failed batches or increase timeout"
}

Monitoring

Connection health

curl -X GET "https://api.matcher.example.com/v1/sources/src_midaz_001/health" \
 -H "Authorization: Bearer $TOKEN"

Response

{
  "source_id": "src_midaz_001",
  "status": "HEALTHY",
  "connection": {
    "connected": true,
    "latency_ms": 45,
    "last_successful_query": "2024-01-20T10:29:00Z"
  },
  "sync": {
    "mode": "realtime",
    "last_event_received": "2024-01-20T10:29:55Z",
    "events_processed_24h": 1250,
    "lag_seconds": 5
  }
}

Sync statistics

curl -X GET "https://api.matcher.example.com/v1/sources/src_midaz_001/stats" \
 -H "Authorization: Bearer $TOKEN"

Best practices

Use realtime sync for active reconciliation

Enable sync_mode: realtime for contexts with daily reconciliation. This ensures transactions are available for matching immediately after posting.

Filter by account path

Use account_filter.path_prefix to limit transactions to relevant accounts. This reduces data volume and improves matching performance.

Set appropriate lookback period

Configure lookback_days based on your reconciliation cycle. Daily reconciliation typically needs 7-14 days; monthly needs 45-60 days.

Monitor sync lag

Track the delay between Midaz posts and Matcher availability. High lag may indicate queue backup or processing issues.

Use metadata for matching

Store matching-relevant data in Midaz metadata fields (invoice numbers, bank references) and map them to Matcher fields for better match rates.
