TED IN allows your institution to receive transfers originated at other banks. The plugin automatically detects incoming transfers, validates the recipient, and credits the amount to the corresponding account.

​
How it works

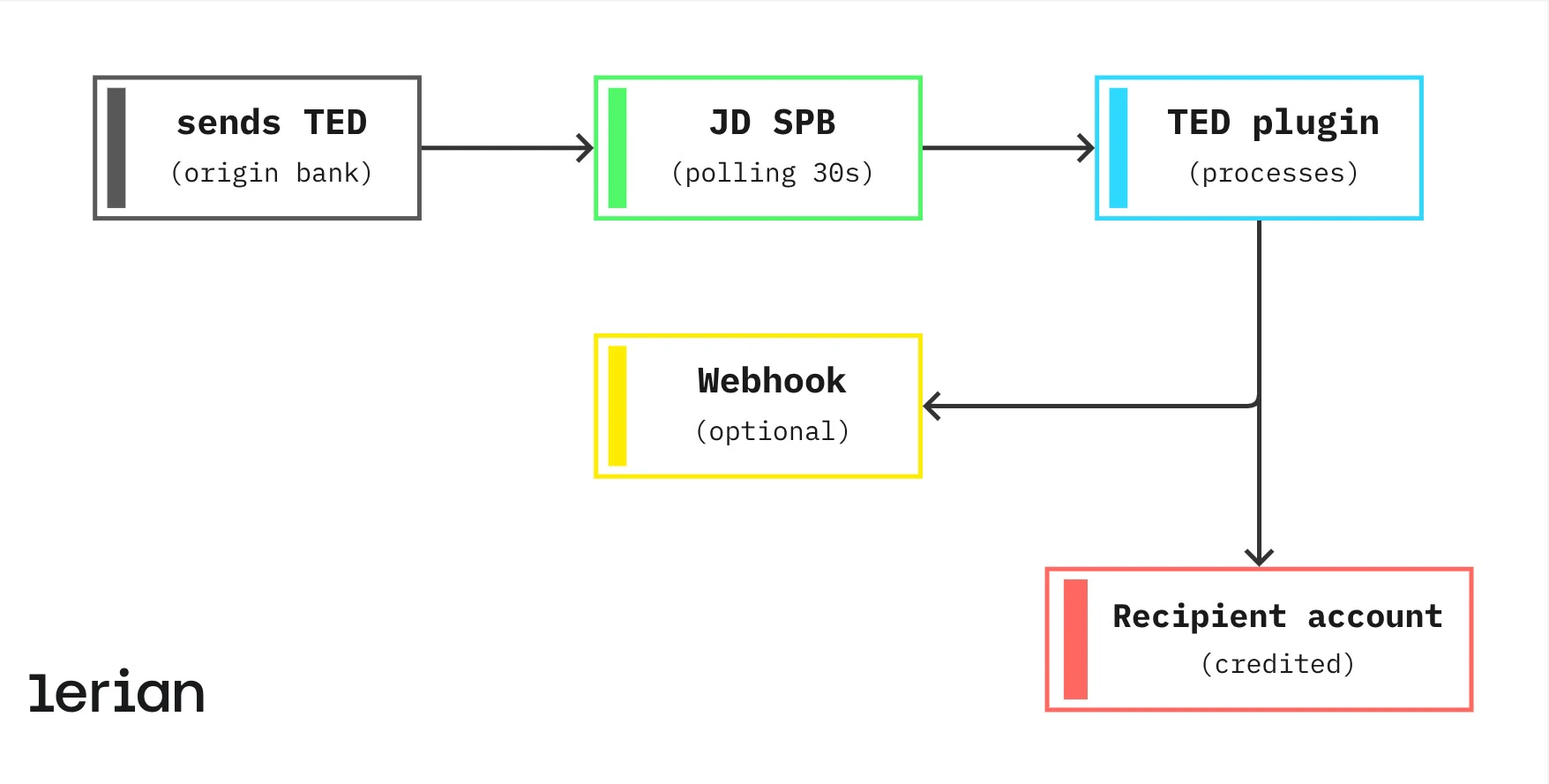

Receiving a TED is an automatic process detected by the polling worker every 30 seconds. TED IN flow diagram
  • The origin bank sends the TED to JD SPB
  • Every 30 seconds, the TED Plugin polls JD via the RecebeMensagem service
  • On detection, the plugin processes the transfer and credits the recipient account
  • Optionally, a webhook notifies your system in real time

​
Detection flow

  1. Every 30 seconds, the worker queries JD’s RecebeMensagem service
  2. When finding a new STR0008R2 message that doesn’t correspond to a transfer sent by the system, it’s identified as an incoming TED
  3. The raw XML message is immediately saved in the JDIncomingMessage table (at-least-once delivery guarantee with deduplication)

​
Processing

  1. Creates a new Transfer entity with type TED_IN and status RECEIVED
  2. Validates if the recipient’s account exists in CRM
  3. If the recipient is valid, calculates the cashin fee (if enabled)
  4. Credits the account in Midaz through CreateCashinTransaction
  5. Updates status to COMPLETED
  6. Sends webhook notification

​
Timeline

  • T+0s — External bank sends the TED
  • T+30s — Polling detects message via RecebeMensagem; persisted in JDIncomingMessage → RECEIVED
  • T+32s — Recipient validated in CRM → PROCESSING
  • T+35s — Account credited via CreateCashinTransaction → COMPLETED
  • T+36s — Webhook notification sent
SLA: < 1 minute detection → < 5 seconds processing

​
TED IN states

StateDescription
RECEIVEDTransfer detected, awaiting processing
PROCESSINGValidating recipient and preparing credit
COMPLETEDAmount credited to recipient’s account
REJECTEDRecipient not found or invalid account

​
Query received transfers

Endpoint: GET /v1/transfers

​
Query parameters

ParameterTypeDescription
typeStringFilter by type (TED_IN)
statusStringFilter by status (COMPLETED, REJECTED)
fromDateISO8601Period start date
toDateISO8601Period end date
pageNumberIntegerPage number (default: 1)
pageSizeIntegerItems per page (default: 50, max: 100)

​
Response

{
  "data": [
    {
      "transferId": "b2c3d4e5-f6a7-8901-bcde-f23456789012",
      "type": "TED_IN",
      "status": "COMPLETED",
      "amount": 5000.00,
      "feeAmount": 0.00,
      "recipientHolderName": "Empresa ABC Ltda",
      "createdAt": "2026-01-21T10:15:00-03:00"
    }
  ],
  "pagination": {
    "pageNumber": 1,
    "pageSize": 50,
    "totalCount": 150,
    "totalPages": 3
  }
}

​
Transfer details

Endpoint: GET /v1/transfers/

​
Response

{
  "transferId": "b2c3d4e5-f6a7-8901-bcde-f23456789012",
  "type": "TED_IN",
  "status": "COMPLETED",
  "sender": {
    "ispb": "60746948",
    "branch": "1234",
    "account": "567890",
    "holderName": "Carlos Oliveira",
    "holderDocument": "98765432100"
  },
  "recipient": {
    "accountId": "550e8400-e29b-41d4-a716-446655440000",
    "holderName": "Empresa ABC Ltda",
    "holderDocument": "12345678000199"
  },
  "amount": 5000.00,
  "feeAmount": 0.00,
  "totalAmount": 5000.00,
  "controlNumber": "JD20260121000042",
  "createdAt": "2026-01-21T10:15:00-03:00",
  "completedAt": "2026-01-21T10:15:05-03:00",
  "statusHistory": [
    {"status": "RECEIVED", "timestamp": "2026-01-21T10:15:00-03:00"},
    {"status": "PROCESSING", "timestamp": "2026-01-21T10:15:02-03:00"},
    {"status": "COMPLETED", "timestamp": "2026-01-21T10:15:05-03:00"}
  ]
}

​
Receiving fee (cashin)

The plugin can charge a fee on received transfers. Configuration is done per organization. When enabled, the fee is calculated via plugin-fees and deducted from the credited amount:
totalAmount = amount - feeAmount

​
Example with fee

{
  "amount": 1000.00,
  "feeAmount": 2.50,
  "totalAmount": 997.50
}

​
Recipient validation

The plugin validates the recipient using the document (CPF/CNPJ) provided in the STR0008R2 message:
  1. Queries CRM by document
  2. If found, identifies the corresponding account
  3. If not found, initiates chargeback

​
Rejected transfer

When the recipient is not found, a chargeback is automatically sent to the origin bank:
{
  "transferId": "d4e5f6a7-b8c9-0123-defg-456789012345",
  "type": "TED_IN",
  "status": "REJECTED",
  "amount": 3000.00,
  "sender": {
    "ispb": "60701190",
    "branch": "0001",
    "account": "123456",
    "holderName": "Ana Costa"
  },
  "rejectionReason": "Recipient not found: document 11122233344 not registered",
  "createdAt": "2026-01-21T11:00:00-03:00",
  "rejectedAt": "2026-01-21T11:00:03-03:00"
}

​
Error handling

Critical errors and their actions:
  • Recipient not found: Send chargeback to JD (STR0010R2), status=REJECTED
  • Midaz unavailable: Retry 3x → DLQ (manual intervention)
  • Duplicate: Unique constraint sequenceNumber prevents duplicate credits

​
Receiving webhook

Configure a webhook to be notified in real-time about received transfers.

​
Event: transfer.incoming

{
  "event": "transfer.incoming",
  "timestamp": "2026-01-21T10:15:05-03:00",
  "data": {
    "transferId": "b2c3d4e5-f6a7-8901-bcde-f23456789012",
    "type": "TED_IN",
    "status": "COMPLETED",
    "amount": 5000.00,
    "feeAmount": 0.00,
    "totalAmount": 5000.00,
    "sender": {
      "ispb": "60746948",
      "holderName": "Carlos Oliveira"
    },
    "recipient": {
      "accountId": "550e8400-e29b-41d4-a716-446655440000",
      "holderName": "Empresa ABC Ltda"
    }
  }
}
See more details in Webhooks.

​
Reconciliation

For accounting reconciliation, use the following fields:
FieldUsage
controlNumberJD SPB control number (unique per transfer)
transferIdLerian internal identifier
createdAtDetection timestamp
completedAtCredit timestamp
Transfer history is kept for 5 years, as per BACEN regulatory requirements.

​
Processing guarantees

The plugin implements guarantees to avoid duplicates and losses:
GuaranteeImplementation
At-least-onceMessages persisted BEFORE processing
IdempotencySame sequenceNumber is not processed twice
RetryTransient failures retried with exponential backoff
DLQPermanent failures go to dead-letter queue
CRITICAL: The message is persisted in the JDIncomingMessage table BEFORE processing, ensuring no transfer is lost in case of failure.
