TED at Lerian

The TED plugin connects your operation to SPB through PSTI JD Consultores, offering a unified API to manage all bank transfer modalities.

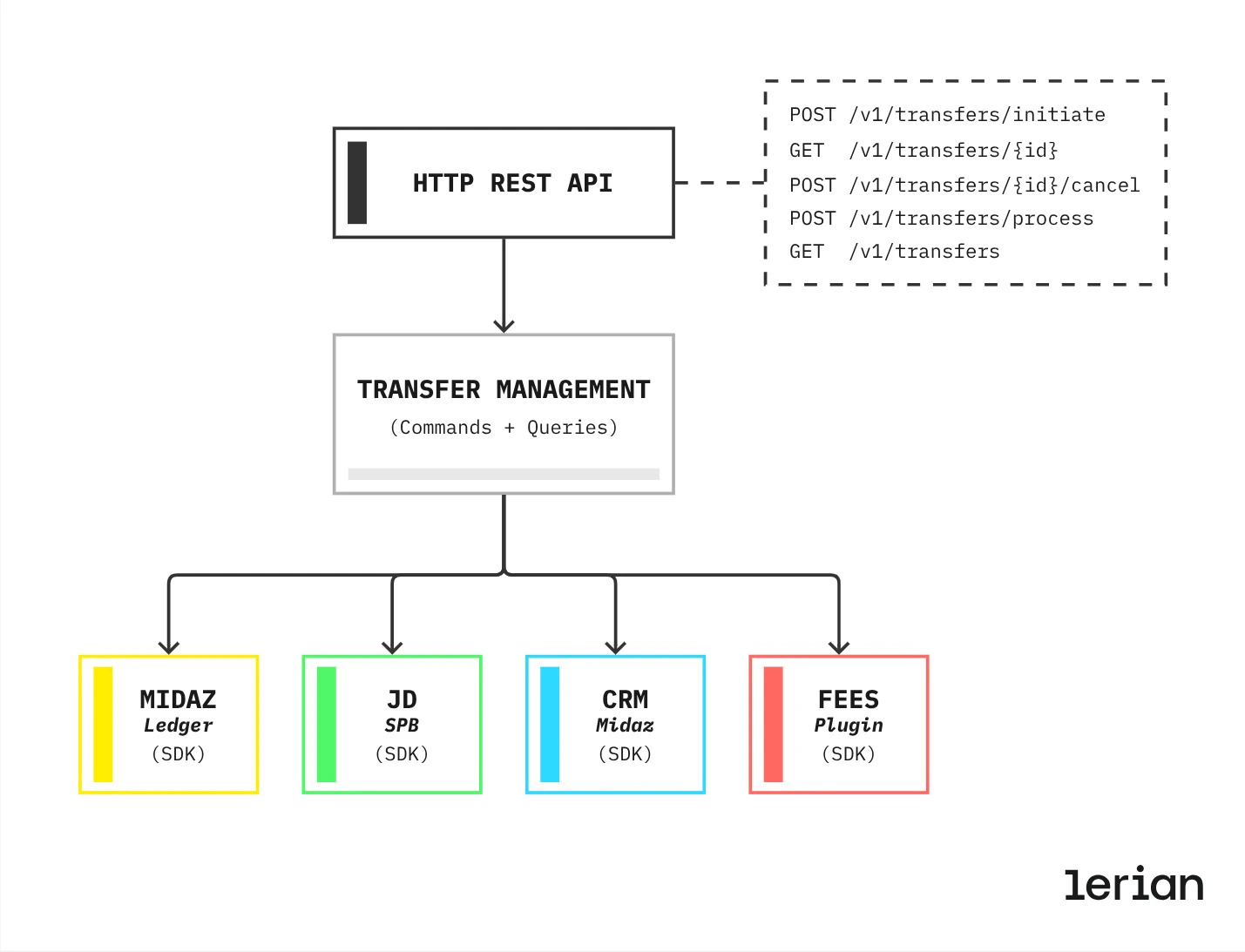

Architectural pattern

The plugin architecture adopts the Hexagonal (Ports and Adapters) pattern combined with CQRS (Command Query Responsibility Segregation) and a Multi-Tenant design. Hexagonal architecture isolates business logic from infrastructure details such as APIs, databases, and external service clients. Communication between the core and the outside world occurs through ports (interfaces) and adapters (implementations). CQRS separates write operations (Commands) from read operations (Queries), allowing each side to be optimized independently.

┌─────────────────────────────────────────────────────────────────┐
│                        HTTP REST API                            │
│  POST /v1/transfers/initiate  |  POST /v1/transfers/process     │
│  GET  /v1/transfers/{id}      |  GET  /v1/transfers             │
│  POST /v1/transfers/{id}/cancel                                 │
└────────────────────────┬────────────────────────────────────────┘
                         │
         ┌───────────────┴───────────────┐
         │   Transfer Management         │
         │   (Commands + Queries)        │
         └───────────┬───────────────────┘
                     │
     ┌───────────────┼───────────────┬──────────────┐
     │               │               │              │
┌────▼────┐    ┌────▼────┐    ┌────▼────┐    ┌───▼────┐
│ Midaz   │    │   JD    │    │  CRM    │    │ Fees   │
│ Ledger  │    │  SPB    │    │(Midaz)  │    │(Plugin)│
│ (SDK)   │    │ (SOAP)  │    │ (HTTP)  │    │ (HTTP) │
└─────────┘    └─────────┘    └─────────┘    └────────┘

Main components

Component	Responsibility	Technology
Transfer Management	Orchestrates TED OUT, TED IN, and P2P flows	Go, Hexagonal + CQRS
Validation and Compliance	Applies schedule rules, limits, and duplicate prevention	Redis (atomic operations)
JD SPB Adapter	Communication with JD Consultores system via SOAP/XML	gowsdl, encoding/xml, crypto/rsa
Midaz Ledger Adapter	Balance operations: validation, provisioning, and settlement	midaz-sdk-golang/v2 (gRPC/HTTP)
CRM Adapter	Validates accounts and retrieves ledger information	HTTP REST client
Fees Adapter	Calculates transfer fees	HTTP REST client
Polling Worker	Detects new incoming transfers (TED IN)	Goroutine (30s interval)
Webhook Publisher	Notifies external systems about status changes	HTTP POST with retries and DLQ

Two-step flow

The plugin implements a two-step flow for outgoing transfers, allowing the user to view the fee before confirming:

Step 1: Initiate

POST /v1/transfers/initiate

Calculates the fee and creates a transfer intent valid for 24 hours. What happens:

Validates the source account in CRM
Verifies operating hours
Detects duplicates (60-second window)
Calculates fee via plugin-fees
Returns initiationId and calculated values

Step 2: Process

POST /v1/transfers/process

Confirms the transfer and starts processing. What happens:

Validates usage limits (daily/monthly)
Verifies available balance
Reserves funds in Midaz (hold)
Sends message to SPB (TED OUT) or executes internal transfer (P2P)
Returns transferId and confirmation number

Transfer states

Each transfer goes through well-defined states:

TED OUT
TED IN
P2P

CREATED → PENDING → PROCESSING → COMPLETED
                               → REJECTED (4xx from JD)
                               → FAILED (5xx/timeout)
        → CANCELLED (user cancels before processing)

RECEIVED → PROCESSING → COMPLETED
                      → REJECTED (recipient not found)

CREATED → PROCESSING → COMPLETED
                     → FAILED (Midaz error)
        → CANCELLED

State	Description
`CREATED`	Transfer created, awaiting processing
`PENDING`	Funds reserved, awaiting SPB submission
`PROCESSING`	Message sent to SPB, awaiting confirmation
`COMPLETED`	Transfer completed
`REJECTED`	Rejected by SPB or recipient not found
`FAILED`	Technical failure (timeout, unavailability)
`CANCELLED`	Cancelled by user before processing
`RECEIVED`	TED IN detected, awaiting credit

Duplicate detection

The plugin detects duplicate transfers by comparing:

Source account
Recipient data (ISPB, branch, account)
Amount

If an identical transfer is sent within the configurable window (default: 60 seconds), the plugin returns error BTF-0012. Mechanism:

Idempotency key: SHA256(organizationId + senderAccountId + recipient + amount)
Storage: Redis with configurable TTL
Action: Reject duplicate requests with code 409 Conflict

Fees

The plugin integrates with plugin-fees for fee calculation in two directions:

Operation	Fee type
TED OUT	Cashout (debit + send)
TED IN	Cashin (receive)
P2P	Configurable per organization

The fee is calculated at the initiation step and displayed to the user before confirmation.

Behavior in case of unavailability

Configuration	Behavior
Fail-open (default)	Continues without fee if plugin-fees unavailable
Fail-closed	Rejects operation if fee cannot be calculated

Multi-tenant support

The plugin was designed to operate in different deployment models, ensuring data isolation and configuration per client (tenant).

Tenant identification

The tenantId is extracted from a JWT claim and validated against the HTTP header X-Organization-Id. This dual validation ensures the tenant context is correctly propagated throughout the execution stack.

Data isolation

All database queries are filtered by organization_id, ensuring a tenant never accesses another’s data. Redis cache also uses per-tenant prefixes (tenant:{tenantId}:{key}), preventing collisions and information leakage.

Deployment models

Model	Description	Use case	Overhead
SaaS Multi-Tenant	Multiple clients sharing the same infrastructure	Lerian clients in managed environment	~5-10ms
BYOC Single-Tenant	Single client in dedicated infrastructure	Large clients with specific requirements	<1ms
BYOC Multi-Tenant	Main client managing subsidiaries	Clients operating as a platform	~2-5ms

Flexibility: A single codebase supports all three models through configuration, without the need for separate branches.

Per-organization configuration

Each organization has independent configuration:

JD SPB credentials (encrypted)
Own ISPB
Webhook URL and HMAC secret
Fee settings
Duplicate detection window
Data isolation mode (DATABASE, SCHEMA, SINGLE)

Observability

The plugin exposes metrics, logs, and traces for complete monitoring.

Metrics (Prometheus)

transfer_initiated_total        # Counter of initiated transfers
transfer_completed_total        # Counter of completed transfers
transfer_failed_total           # Counter of failures
transfer_duration_seconds       # Duration histogram
jd_api_latency_seconds          # JD API call latency

Structured logs

All logs follow JSON format with contextual fields:

tenantId: tenant identification
transferId: transfer identification
correlationId: correlation between operations

Sensitive data (CPF/CNPJ) is hashed with SHA-256.

Traces (OpenTelemetry)

Context propagation between services (Midaz, CRM, Fees, JD) for distributed tracing.

Next steps

Send TED

Initiate transfers to other institutions

Receive TED

Process incoming transfers automatically

P2P Transfers

Optimize internal transfers

Webhooks

Configure event notifications
