Midaz is designed for genuine portability and independence; you can deploy it on any public or private cloud without being tied to a single provider.

Underneath, we utilize a microservices architecture, which allows each component to be self-sufficient and easily scalable (or replaceable) as your requirements change.

Microservices architecture

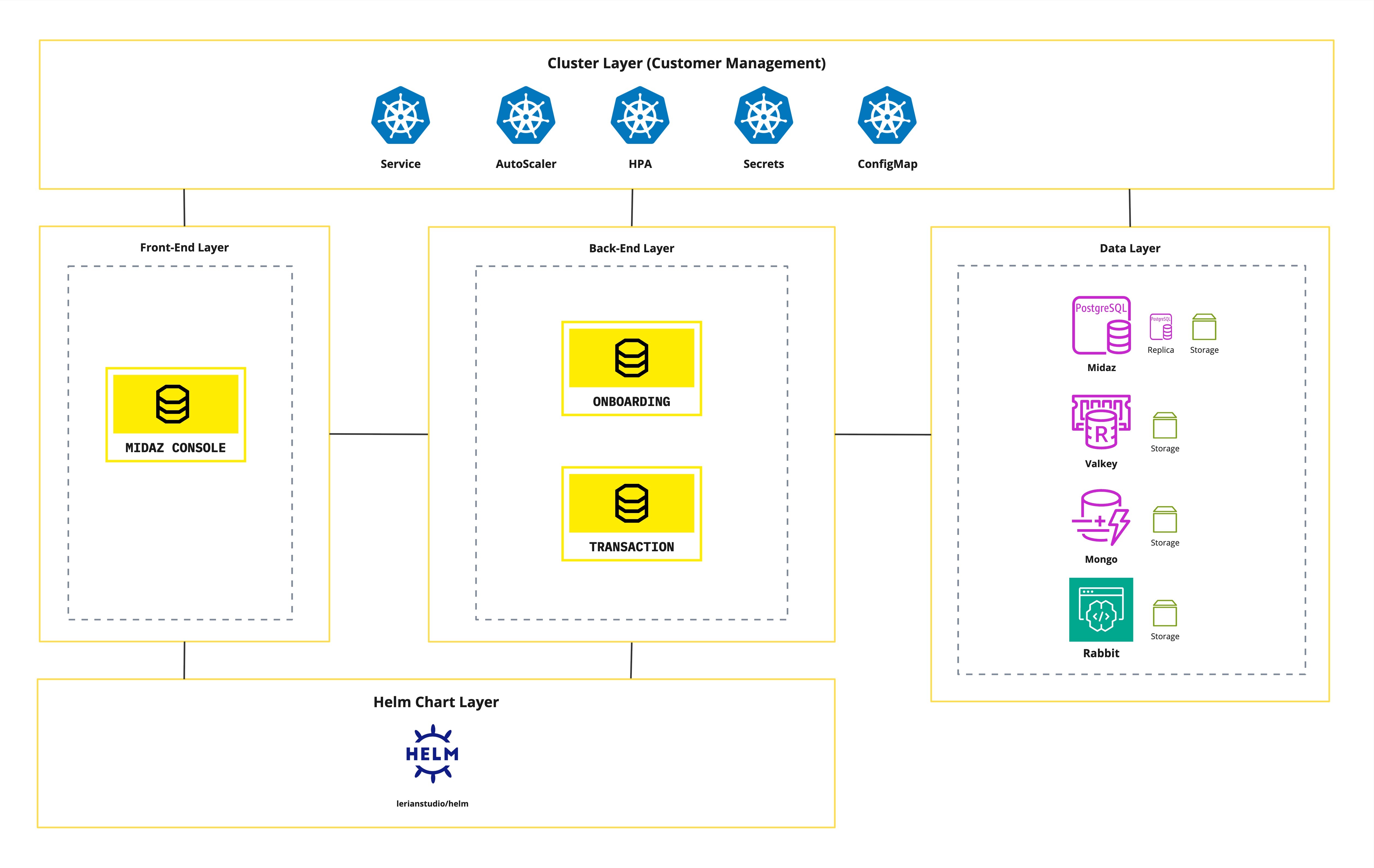

The diagram below (Figure 1) shows how the pieces fit together.

1. Cluster layer (customer management)

This layer is managed by the customer and provides the Kubernetes foundation for running Midaz. We recommend enabling the following services to ensure a smooth and secure deployment:

• Service: Networking abstraction to expose and route services.
• AutoScaler: Automatically adjusts the number of pods.
• HPA (Horizontal Pod Autoscaler): Scales applications based on metrics.
• Secrets: Secure management of sensitive data.
• ConfigMap: Externalized configuration management.

This layer governs and coordinates all components within the cluster.

2. Front-end layer

Includes the Midaz Console, which functions as the user interface for system interaction (such as the admin panel, dashboards, etc.).

3. Back-end layer

Includes the two services that form the essential foundation of the Midaz Ledger:

• Onboarding: Handles organization, ledger, asset, portfolio, segment, and account setup.
• Transactions: Manages financial transactions, operations, and movement of assets.

4. Data layer

This layer includes the databases and infrastructure components required to support application data and event flows:

• PostgreSQL (named "Midaz"): Used as the leading relational database; includes a replica for redundancy or read scaling.
• Valkey: A Redis-compatible key-value store for caching or fast data retrieval.
• MongoDB: Likely used for storing unstructured or semi-structured data.
• RabbitMQ: Message broker for asynchronous communication between services.

Each of these has associated persistent storage for data durability.

5. Helm Chart layer

Midaz uses Helm Charts (specifically lerianstudio/helm) to make infrastructure deployment and configuration more straightforward and efficient.

It serves as the connecting element between code and Kubernetes, ensuring each component is deployed consistently across different environments.

📘

Note

Refer to the Deploying using Helm page for more information.

Infrastructure that works

In Midaz’s Architecture, each layer is focused, with no unnecessary complexity. It scales naturally and adapts as your needs change. This setup isn’t just technically solid; it’s built for real-world use.

• Kubernetes coordinates how each layer communicates, ensuring secure and reliable interactions across the system.
• Helm keeps deployments and configurations in sync, so scaling and updates happen without friction.

Because the platform is modular, extending it is simple. You can add new components as needed without disrupting what’s already in place.
